High Brightness 17.3" FHD TFT LCD Module with 800 Nits for Industrial/Commercial Use

Name: High Brightness 173quot FHD TFT LCD Module with 800 Nits for IndustrialCommercial Use
Brand: SAEF
Price: 1 USD

Wholesale High Brightness 17.3" FHD TFT LCD Module with 800 Nits for Industrial/Commercial Use from china suppliers

Brand Name : SAEF

Model Number : SFTO1730RX-7332AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Lowest market price guaranteed

Payment Terms : PayPal, T/T

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Screen Size : 17.3" Diagonal

Resolution : 1920 × 1080 (Full HD)

Brightness : 800 cd/m² (Typical)

Contrast Ratio : 600:1 (Typical)

Response Time : 40 ms (Typical On/Off)

Interface : Dual-Channel LVDS

Operating Temp. : 0°C to +70°C (Industrial Grade)

Storage Temp. : -20℃ to +70℃

Power Consumption : 31 W (Typical）

Color Support : 16.7M Colors (RGB 6-bit + HiFRC)

Warranty : 2 Years (Extended Coverage for Industrial Use)

Compliance : RoHS, REACH, Halogen-Free

Contact Now

High Brightness 17.3" FHD TFT LCD Module - SFTO1730RX-7332AN

The SFTO1730RX-7332AN is a high-performance 17.3" Full HD (1920 x 1080) TFT LCD module designed for industrial, commercial, and outdoor applications. With an impressive 800 cd/m² brightness, this module ensures clear visibility even in direct sunlight, making it ideal for environments with high ambient light.

Key Features

Ultra-Bright Display: 800 nits (cd/m²) for optimal visibility in bright conditions.
Full HD Resolution: 1920 x 1080 pixels with RGB vertical stripe pixel arrangement for vibrant, sharp images.
Wide Viewing Angles: Horizontal (80°) and vertical (60°) for multi-angle viewing flexibility.
Fast Response Time: 40 ms (on/off) for smooth motion display.
Robust Performance: Operates reliably in temperatures from 0°C to +70°C and stores safely in -20°C to +70°C environments.
Low Power Consumption: 31 W typical power consumption for energy efficiency.
16.7M Color Support: Delivers lifelike colors via RGB 6-bit + HiFRC technology.
Dual-Channel LVDS Interface: Ensures stable and high-speed signal transmission.
RoHS Compliance: Environmentally friendly and safe for global markets.

Applications

Industrial control panels and HMIs
Digital signage and kiosks
Outdoor displays and vending machines
Medical equipment and test systems
Automotive and transportation systems

Technical Specifications

Parameter	Value
Screen Size	17.3" Diagonal (17.25")
Active Area	381.888 mm (H) x 214.812 mm (V)
Pixel Pitch	0.1989 mm (per triad)
Surface Treatment	Hard-coated (3H), Anti-Glare
Backlight Type	LED with adjustable brightness
Input Voltage	3.3 V (Logic/LCD Drive)
Backlight Input Voltage	12 V DC
Weight	1080 g (Typical)
Dimensions	403 mm (H) x 240 mm (V) x 12.5 mm (D)

Packaging & Reliability

Packaging: Anti-static bag, protective film, and sturdy carton for secure shipping.
Reliability Testing: Passes rigorous tests including thermal shock (-20°C to 60°C, 50 cycles), vibration (1.5 G), and ESD (±8 kV contact discharge).
MTTF (Mean Time To Failure): 50,000 hours under normal operating conditions.

Why Choose SFTO1730RX-7332AN?

Durability: Designed for harsh environments with ESD and vibration resistance.
Global Compliance: RoHS-certified and compatible with international standards.
Customization: Flexible backlight control (ExtVBR-B signal) for brightness adjustment.

Support & Warranty

We offer technical support, certified documentation, and 24/7 customer service to ensure your project success.

External Dimensions

High Brightness 17.3" FHD TFT LCD Module with 800 Nits for Industrial/Commercial Use

Backlight Specification

Pin No.	Symbol	Description
1	VCC	Power supply voltage +12V
2	VCC	Power supply voltage +12V
3	ON/OFF	Output enable signal
4	DIM	Dimming signal
5	GND	Power ground
6	GND	Power ground

Electrical Characteristics

Parameter			Symbol	Values			Unit
				Min	Typ	Max
Power Supply Input Voltage			VBL	10.8	12.0	13.8	Vdc
Power Supply Input Current			IBL	-	2.16	2.53	A
Power Supply Input Current (In-Rush)			In-rush	-	-	(TBD)	A
Power Consumption			PBL	-	26	35	W
Input Voltage for Control System Signals	On/Off	On	V on	2.5	-	5.5	Vdc
		Off	V off	-0.3	0.0	0.5	Vdc
	Brightness Adjust		ExtVBR-B	30	-	100	%
				30	-	100	%
	ExtVBR-B Frequency		fPWM	500	-	1500	Hz
	Pulse Duty Level (PWM)		High Level	2.5	-	5.5	Vdc
			Low Level	0.0	-	0.5	Vdc
Life Time				30,000	50,000		Hrs

Interface Pin Definition

Pin#	Signal Name	Pin#	Signal Name
1	RxOIN0-	2	RxOIN0+
3	RxOIN1-	4	RxOIN1+
5	RxOIN2-	6	RxOIN2+
7	VSS	8	RxOCLKIN-
9	RxOCLKIN+	10	RxOIN3-
11	RxOIN3+	12	RxEIN0-
13	RxEIN0+	14	VSS
15	RxEIN1-	16	RxEIN1+
17	VSS	18	RxEIN2-
19	RxEIN2+	20	RxECLKIN-
21	RxECLKIN+	22	RxEIN3-
23	RxEIN3+	24	VSS
25	VSS	26	VSS
27	VSS	28	VDD
29	VDD	30	VDD

Optical Characteristics

Item	Unit	Conditions	Min.	Typ.	Max.
Viewing Angle	[degree]	Horizontal (Right) CR = 10 (Left)	70 70	80 80	-
		Vertical (Up) CR = 10 (Down)	50 70	60 80	-
Luminance Uniformity	[%]	13 Points	75	80	-
Optical Response Time	[msec]	Rising	-	37	50
		Falling	-	3	10
		Rising + Falling	-	40	60
Color / Chromaticity Coordinates (CIE 1931)		Red x	0.59	0.64	0.69
		Red y	0.3	0.35	0.4
		Green x	0.27	0.32	0.37
		Green y	0.57	0.62	0.67
		Blue x	0.1	0.15	0.2
		Blue y	0	0.05	0.1
		White x	0.25	0.30	0.35
		White y	0.26	0.31	0.36
White Luminance (At LED=100mA)	[cd/m2 ]		700	800	-
Contrast Ratio			500	600	-
NTSC	%			72

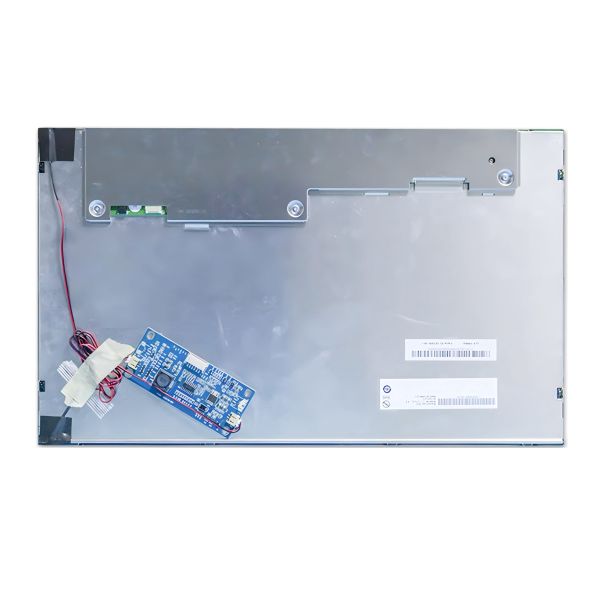

Product Image
